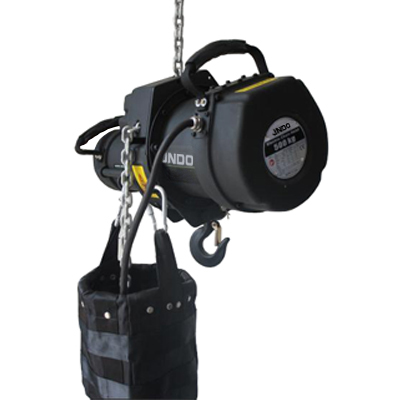

                                                                    舞台电动葫芦特点:
                                                                    1、高效、质轻电机,无石棉刹车系统,低能耗;
                                                                    2、冲压钢构壳体,轻巧而坚固;
                                                                    3、高轻度安全吊钩,承受意外超负荷冲击不会发生断裂,起重时只会逐渐变形;
                                                                    4、轻巧美观耐用的塑制链带;
                                                                    5、极限开关:吊上吊下都有极限开关装置,使电机自动停止,防止链条超出,确保安全;
                                                                    6、热处理成型的钢导链板;
                                                                    7、操作简便,便于维护;
                                                                    8、以正反双向和全天候使用而设计;
                                                                    9、配有可调螺旋式限位开关,可靠性能更高;
                                                                    10、链条镀锌处理,不易生锈;
                                                                    11、润滑油装在齿轮箱内,防止油滴渗透到舞台上;
                                                                    12、葫芦的马达密封在铝质的钢圈圆柱形外壳内,永久保马达;
                                                                    13、适合与各种控制器和电路分电器相连。

                                                                    舞台电动葫芦参数:

载荷量
(T)
链长
(m)
输出功率
50Hz(kw)
提升速度
50Hz(m/min)
绝缘等级 起重链条 测试负载
(T)
净重
(约kg)
直径
(mm)
链行数

0.5 4.0 0.83 8.6 F 7.1 1 0.625 53
1 4.0 1.5 6.8 F 7.1 1 1.25 55
1.5 4.0 3.0 8.4 F 11.2 1 1.88 98
2 4.0 1.5 3.4 F 7.1 2 2.5 62
2 4.0 3.0 6.7 F 11.2 1 2.5 100
