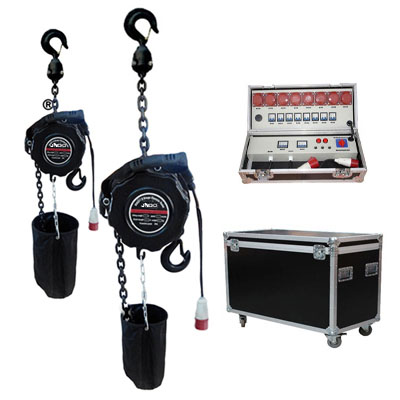

                                                                                舞台电动葫芦特点:
                                                                                1、高效、质轻电机,无石棉刹车系统,低能耗;
                                                                                2、冲压钢构壳体,轻巧而坚固;
                                                                                3、高强度安全吊钩,承受意外超负荷冲击不会发生断裂,起重时只会逐渐变形;
                                                                                4、轻巧、美观而耐用的塑制链袋;
                                                                                5、热处理成型的钢导链板;
                                                                                6、极限开关:吊上吊下都有极限开关装置,使电机自动停止,防止链条超出,确保安全;
                                                                                7、操作简便,便于维护;
                                                                                8、以正反双向和全天候使用而设计;
                                                                                9、配有可调螺旋式限位开关,可靠性能更高;
                                                                                10、链条镀锌处理,不易生锈;
                                                                                11、润滑油脂装在齿轮箱内,防止油滴渗透到舞台上;
                                                                                12、葫芦的马达密封在铝质的钢圈圆柱开形外壳内,永久保马达;
                                                                                13、适合与各种控制和电路分电器相连;
                                                                                14、双刹车系统,确保作业安全。


                                                                                 舞台电动葫芦技术参数:

额定载重量
(kg)
型号 发动机功率
KW
链条行数 起升速度
(m/min)
机体净重
(kg)
每米链条净重
(kg)
500 DH-W0.5A 0.4 1 4.2 23 0.76
500 DH-W0.5B 0.4 1 6 23 0.76
1000 DH-W1A 0.8 1 3.5 38 1.3
1000 DH-W1B 0.8 1 5 38 1.3
2000 DH-W2A 1.1 1 2.8 49 2.1
2000 DH-W2B 1.1 1 4 49 2.1
